Brand portfolio

World-class makers, supported from Sabah.

Tenova represents seven global manufacturers across valves, fittings, actuation, pumps and flow measurement. Capacity, product range, testing, certifications and locations for each are below.

Partner profile · India

Flow Control Commune (FCC)

Chennai-based maker of bespoke and severe-service control valves: design, R&D, manufacturing and testing under one roof.

FLOW CONTROL COMMUNE (FCC)Globe, butterfly & choke valves · Diaphragm & piston actuators

40,000 sq ftFactory floor on a 100,000 sq ft plot

2,000 valvesProduction capacity, 5,000 in Phase 2

71 people60% engineers, 40% technicians

Since 2022Founded in Chennai by G. Kalaiselvan

Product range

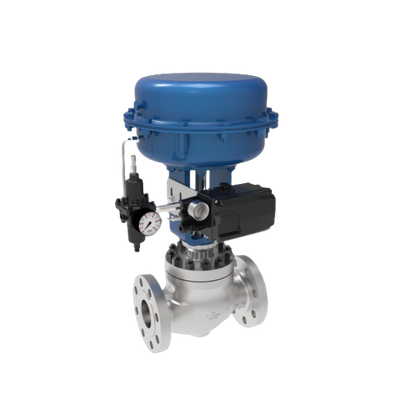

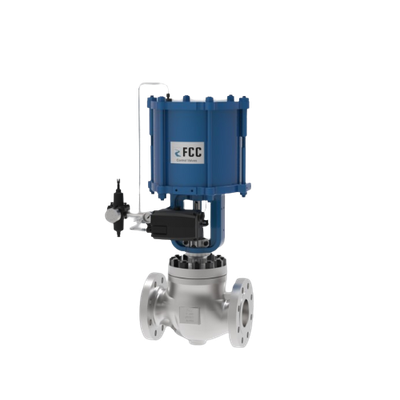

Globe control valves: 1–24", Class 150–2500

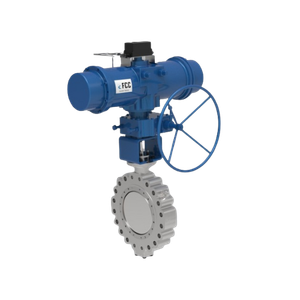

Butterfly valves: double and triple offset, 3–36", Class 150–600
Choke valves: API 6A adjustable chokes
Actuators: multi-spring diaphragm and piston; pneumatic, electric, E/H
ASU & LNG: cryogenic, cold-box (top entry) and Joule-Thomson valves

Testing & quality

Special tests: fugitive emission (ISO 15848), fire-safe (API 607), cryogenic (BS 6364)
Flow capacity: tested at NABL-accredited labs to ISA 75.02
NDE: MT, PT, RT and UT by 7 ASNT-qualified inspectors
Assembly: ISO Class 7 clean room; NACE Level II coating inspection

Industries served

Oil & Gas · LNG · Air Separation · Refinery · Fertilizer · Chemicals · Power · Water

Certifications

ISO · OHSAS · EMS · PED · IBR · CU TR

Partner profile · Italy · USA

Bonney Forge (BFE & WFI)

Forged steel valves from Bergamo, Italy, and engineered forgings from Houston, Texas.

GROUP COMPANIESB.F.E. · WFI InternationalBonney Forge, founded in 1876 and family-owned, acquired BFE in 2013. WFI is its Houston forge and engineered-products plant.

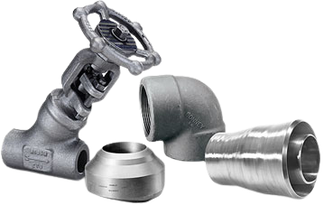

BONNEY FORGEForged valves · Engineered forgings · Forged fittings · Olets & pipets · Specialty products

1953BFE making forged valves in Bergamo

Class 4500Top rating for BFE pressure seal valves

1977WFI ASME quality certified since

3,000 tHydraulic press at WFI's Houston forge

BFE valves · Italy

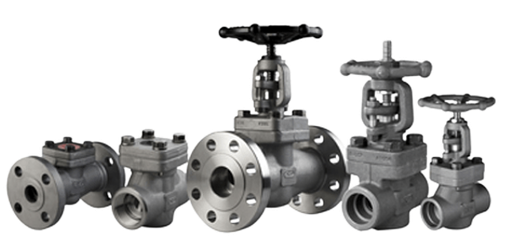

Forged valves: gate, globe, check
Pressure seal: and DB&B, to Class 4500
API 6A: PSL 1–3, to 10,000 psi
Ball valves: floating, trunnion, to −196°C
Fast Track: separate plant, urgent orders

WFI forgings · USA

In-house: design, forging, machining
Forge plant: 16,000 sq ft
Equipment: 300 t ring roller, twin furnace
Proof testing: burst, fatigue, FEA
Code compliance: own stress factors

Locations

BFE: Albano S. Alessandro (BG), Italy
WFI: Houston, Texas, USA

Industries

Oil & gas · Refining · Petrochem · Power · Chemical · Piping

Partner profile · China

Lixin Valve Group

Zhejiang-based valve group founded in 2000, with five subsidiaries and its own foundry.

LIXIN VALVE GROUPBall · Gate · Globe · Check · Angle · Butterfly valves

LIXINVALVE GROUP

50,000 m²Total building area across 5 subsidiaries

20,000 tAnnual valve output plus 12,000 t foundry

450+ peopleIncluding 50 senior and intermediate engineers

460+ lathesLarge and medium CNC machining equipment

Product range

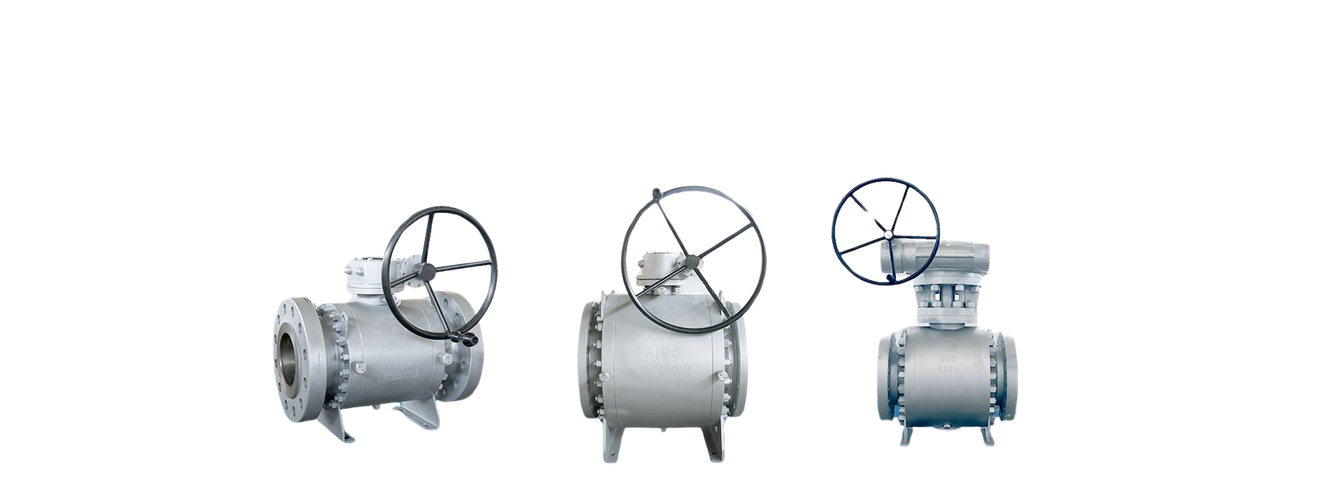

Ball valves: floating, trunnion and top entry
Butterfly valves: triple offset, double offset and concentric

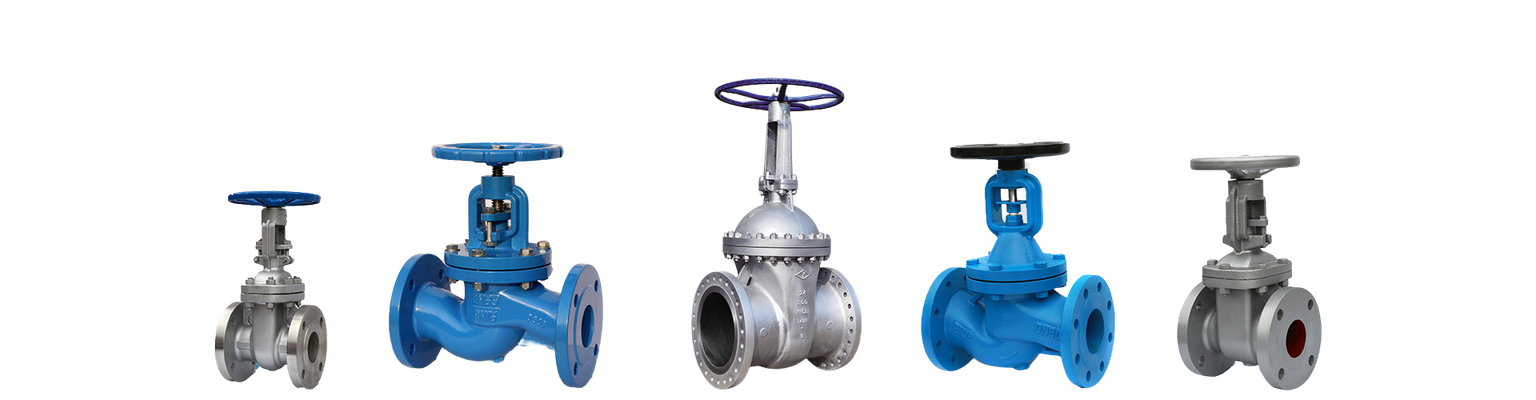

Gate, globe & check valves: to API 600, 602 and 594
Plug & knife gate valves: plus, angle valves
Power plant valves: high temperature, high pressure

Testing & quality

Fire-safe: API 607 and API 6FA certified ball, butterfly and plug valves
Emissions & safety: ISO 15848-1 tested; SIL certified by TÜV
Laboratory: CNAS-accredited valve testing centre
Inspection: every valve pressure tested before shipment
Foundry: carbon, stainless and duplex steel castings

After-sales service

18-month warranty · 2-hour response
Engineer on site within 24 hours

Certifications

API 6D · 594 · 600 · 602 · 608 · 609
ISO 9001 · 14001 · 45001 · CE

Partner profile · Netherlands · UAE

Den Holder

Dutch precision engineering firm, founded in 1921, making flow elements and piping specials for oil and gas.

DEN HOLDERFlow elements · Line blanks · Piping specials · Orifice plates · Orifice flanges & meter runs · Flow & venturi nozzles · Flow straighteners · Venturi tubes · Strainers · Injection quills

1921Founded; over a century in precision engineering

2 sitesBreda, Netherlands and Abu Dhabi, UAE

Same-dayDelivery from Abu Dhabi for maintenance needs

ISO 9001Quality system certified to the 2015 standard

Product range

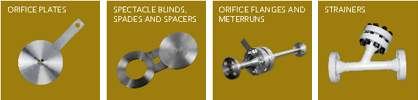

Flow elements: orifice plates, flow nozzles, venturi tubes
Metering: orifice flanges, junior fittings, meter runs
Line blanks: spectacle blinds, spades and spacers
Piping specials: strainers, compensators, insulation kits

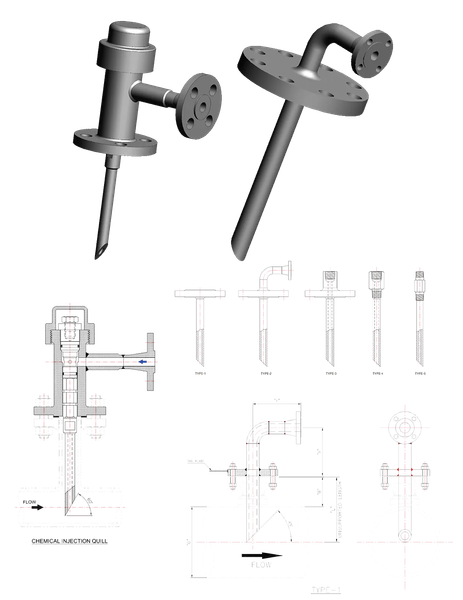

Instrument parts: thermowells and sample coolers

Engineering & materials

Built to order: every product designed to the client's specification
Design codes: ISO 5167, ASME B31.3 and B16.36, API, DIN, BS
Approvals: PED and TÜV
Materials: stainless, duplex, super duplex, Hastelloy, Monel, Inconel, titanium
Documentation: drawings, calculations, welding procedures, data books

Locations

Breda, the Netherlands
Abu Dhabi, UAE: production since 2015

Short-notice supply

Raw materials and equipment held in stock

Partner profile · China

Beijing Aerospace HT11

HT series safety valves from China's rocket engine institute, sold worldwide by Beijing ZHH.

MANUFACTURED BYBeijing Aerospace Propulsion InstituteChina's first liquid rocket engine institute, applying space technology to industrial valves since 1984. Beijing ZHH Flow Control System markets the HT range overseas.

BEIJING AEROSPACE HT11 · BEIJING ZHONGHANGHUASafety · Relief · Special valves · Pressure safety valves · Pressure relief valves

1958Parent institute founded, rocket engine pioneer

1999ZHH set up as sole HT safety valve seller

ASMEUV-certified safety valves since 2012

400+Domestic customers, 10+ export countries

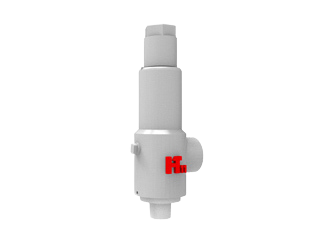

Safety valve range

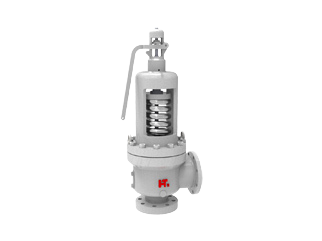

Relief valves: HTO/HTB, 1" to 10", 150–2500 lb

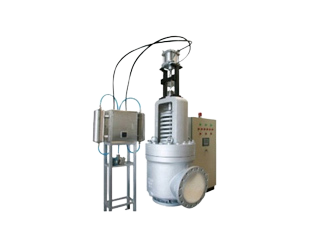

Pilot operated: HTXD, 150–2500 lb
Steam: HTGS, 300–2500 lb, to 520°C
Cryogenic: HTXO, down to −196°C
Specials: surge relief, lined, jacketed

Engineering & track record

Temperature: −196°C to +538°C (HTO/HTB)
Bellows: balanced against back pressure
Seats: hardfaced carbide sealing faces
Approved: Sinopec and PetroChina supplier
Also sells: special, coal-chemical, ship valves

Sales office

Kaixuan Center, Chaoyang District
Beijing · sales@ht11valve.com

Export markets

Southeast Asia · Middle East · Africa · Central Asia · Russia

Partner profile · China

Hankun Fluid Control

IoT electric actuators, hose pumps and dosing systems, designed in Beijing and built in Shanghai.

OWN BRANDSHITORK · HIGHPUMP · HIVALHankun (Beijing) Fluid Control Technology designs and builds its own actuators, valves and pumps, and assembles valve-actuator packages in-house.

HANKUN FLUIDActuators · Hose pumps · Dosing devices · Gearboxes

2007Hankun brand founded, Beijing headquarters

2016First in-house HITORK actuator in service

NuclearQualified supplier to China Nuclear Power

7+Countries with authorised distributors

Product range

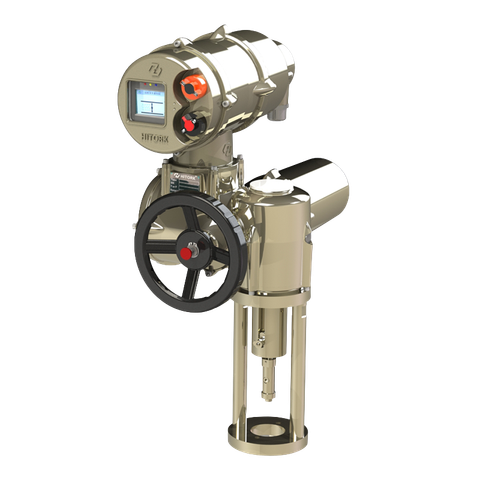

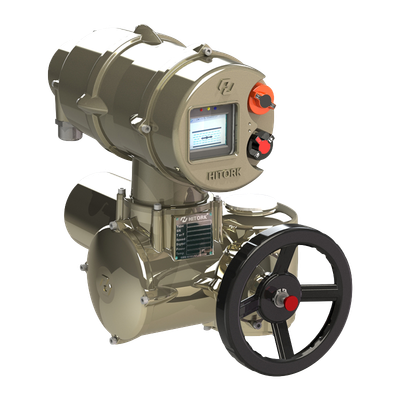

Electric: multi-turn, part-turn, linear
Pneumatic: rack & pinion, yoke, piston

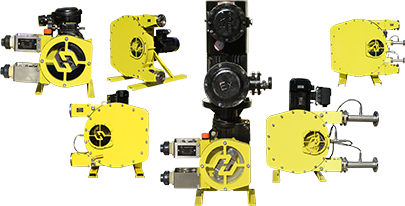

Hose pumps: HIGHPUMP, to 15 bar, 80°C
Metering pumps: diaphragm, plunger
Dosing skids: hypochlorite, acid, powder

IoT & track record

Remote monitoring: 2G/4G-connected units
Predictive: diagnosis and active alarms
Pump sensors: leaks, oil level, hose life
One-stop: valve + actuator assembly
Rotork: agent in China since 2009

Headquarters & factory

Head office: Fengtai District, Beijing
Factory: Shanghai

Industries

Power · Chemical · Oil & gas · Mining · New energy · Water

Partner profile · USA

Crane ChemPharma & Energy

Engineered valves, lined pipe, pumps and actuation for corrosive and hazardous process duties.

PART OFCrane CompanyCrane CPE sits in Crane's Process Flow Technologies segment and brings more than 25 specialist brands under one supplier, from XOMOX plug valves to SAUNDERS diaphragm valves.

CRANE CPEValves · Lined pipe · Pumps · Lined & plug valves · Diaphragm valves

CRANEChemPharma & Energy

KEY BRANDS
XOMOX · SAUNDERS · DEPA · RESISTOFLEX · HOKE

1855Crane Company founded, USA

25+Specialist flow control brands

~7,000Crane employees across 5 regions

ISO 15848Low-emission valve certification

Product range

Check valves: DUO-CHEK, NOZ-CHEK
Plug & ball: XOMOX sleeved plug, process ball
Butterfly: CENTER LINE, FLOWSEAL
Lined pipe: RESISTOFLEX, ROTOMAX
Pumps & sampling: DEPA, DOPAK

Markets & capabilities

Diaphragm: SAUNDERS aseptic and industrial
Actuation: XOMOX, WESTLOCK CONTROLS
Cryogenics: CRANE Cryogenics, CryoWorks
Hydrogen: HOKE valves, fittings, regulators
Serves: chemical, pharma, O&G, refining, power

Headquarters

4526 Research Forest Dr, The Woodlands
Texas, USA · info@cranecpe.com

Key brands

XOMOX · SAUNDERS · DEPA · RESISTOFLEX · HOKE

Manufacturer data as published by each principal. Trademarks belong to their respective owners.
